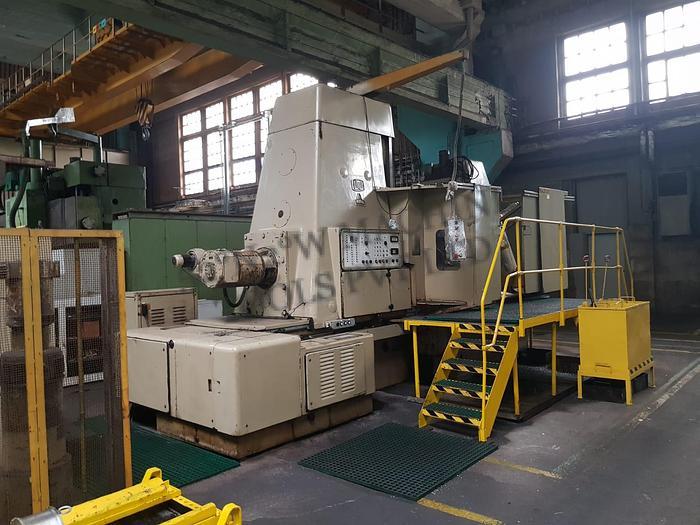

The WMW ZFWZ 2000/3 is a versatile gear hobbing machine designed for precise gear cutting tasks. With its robust construction and advanced features, it ensures accurate machining of gears. Ideal for industries requiring high-quality gear production, offering reliability and efficiency for superior results in various applications.
Type:Gear Hobbers
Specification:
Max diameter of gear without tailstock 2100 mm
Max diameter of gear with tailstock 1450 mm
Max face of gear 1060mm
Max module with hobbing head 22
Max/ Min center distance 1240/150 mm
Min number of teeth 10
Max pressure angel 45 deg
Table dia / number of slots 1800 mm/12
Bore in table / length 600/800 mm
Max dia of hob / length 300/330 mm
Max weight of workpiece 15000 kg
Video- https://f.machineryhost.com/7b8ad3c90061c88801fceaca12f9aec7/mh_converted_WhatsApp%20Video%202021-03-15%20at%2012.mp4
