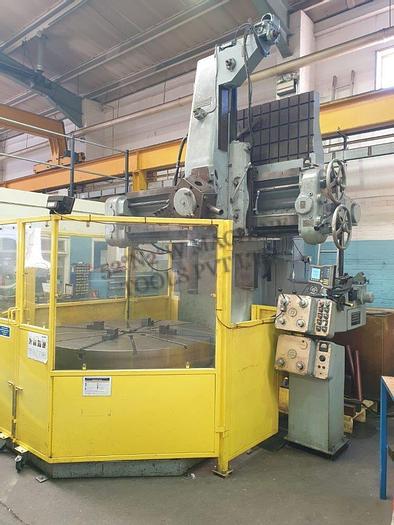

The Webster & Bennett 72” EH Series Elevating Rail Vertical Borer is a large machine used for shaping and cutting metal. It has a 72-inch table for holding big parts and an adjustable rail for precise machining. This vertical borer is ideal for heavy-duty work, providing accurate, powerful cuts.

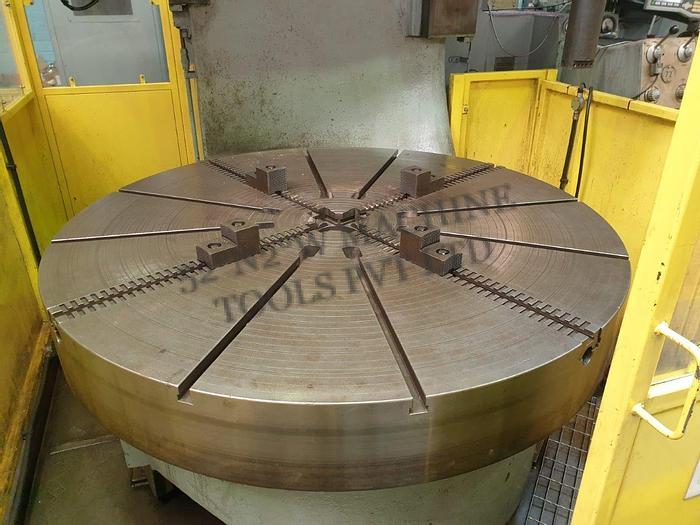

Table Size 72”
Max Swing 84″ / 2134mm
Height under cross slide 47″ / 1194mm
Cross slide rise & fall 24″ / 610mm
Turret rise & fall 38″ / 965mm
Turret traverse 50″ / 1270mm
Height under rail 48” / 1220mm
Speeds 3.8 – 83 rpm
Feed rate 0.004″ – 0.1875″/ 0.1mm – 4.76mmin

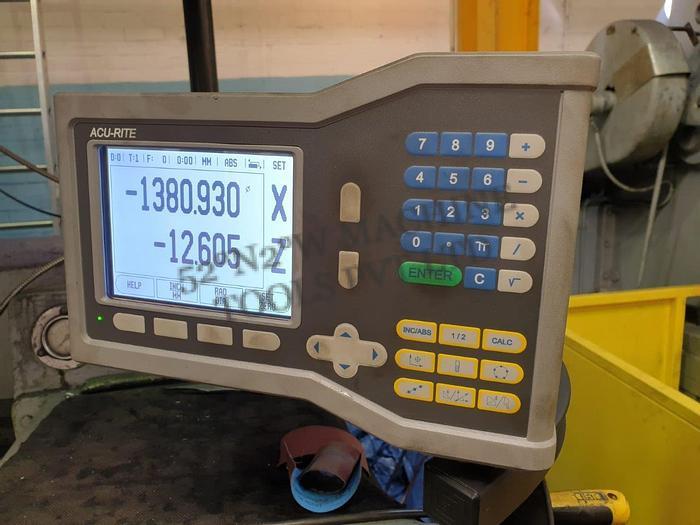

Complete with: Table Jaws, Turret Tooling, Table Guards, Power rise/fall rail, Power Clamping Coolant Pump & Tray Interlocked Safety Guards Tracing Attachment Acurite 2 Axis DRO
