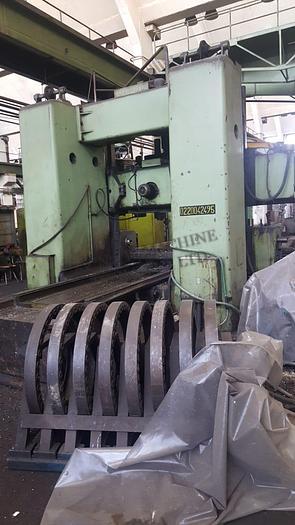

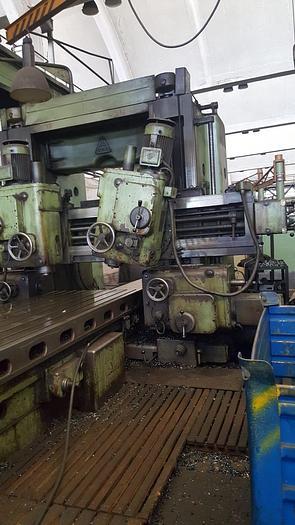

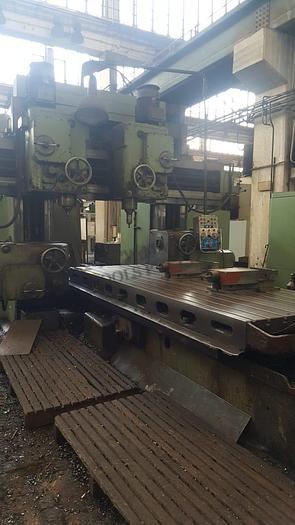

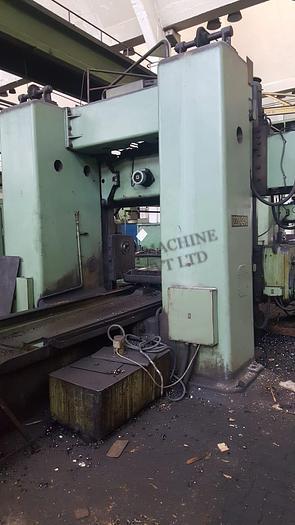

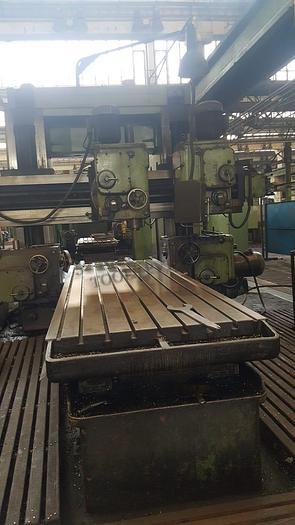

TOS FP 16 PLANO MILLER
TABLE 1250mm x 3500mm
BED LENGTH 7000mm
TABLE MOVE ON BED 3200mm
TABLE MOVE SPEEDS 25 – 750mm/min
FAST MOVE OF TABLE 4000mm/min
SPINDLE 50mm
STROKE OF SPINDLE 250mm
REVOLUTION OF
MILLING SPINDLE
STAGES 19, NORMAL
14-900 RPM
SPINDLE MOVE 25-100mm/min
FAST MOVE OF SPINDLES & CROSS RAIL 1000mm/min
DIST. BETWEEN COLUMN 1660mm
DIST. OF VERTICAL SPINDLE NOSE & TABLE SURFACE 100 – 1250mm
DIST. OF TABLE SURACE & HORIZONTAL SPINDLE AXES 100-1000mm
DIST. BETWEEN HORIZONTAL SPIDNLES 900-1400mm
DIST. BETWEEN HORIZONTAL SPINDLE HOUSES 1520mm
SMALLEST DIST. BETWEEN AXES OF VERTICAL SPINDLE 410mm
MOTOR FOR TABLE 1-15 kW
TOS FP 16 PLANO MILLER
DIMENSIONS L7100 x W4350 x
H3800 mm
Machine’s weight 39000
