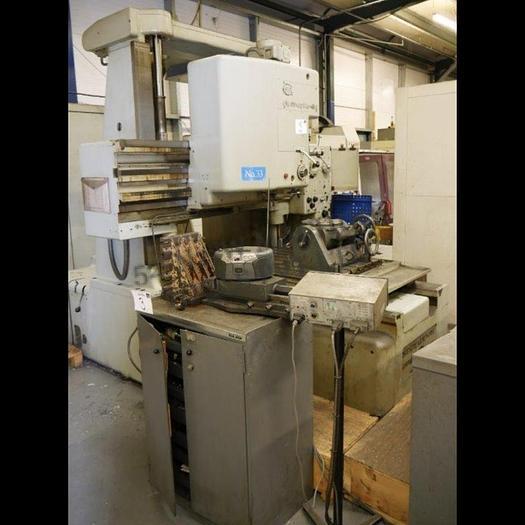

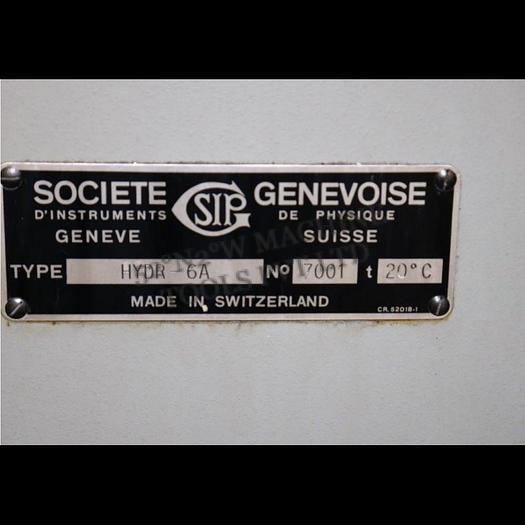

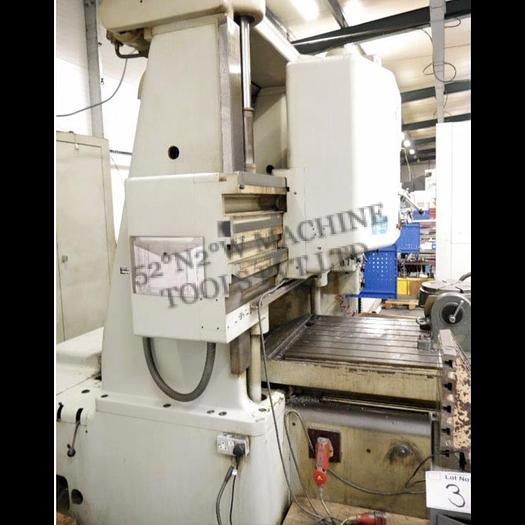

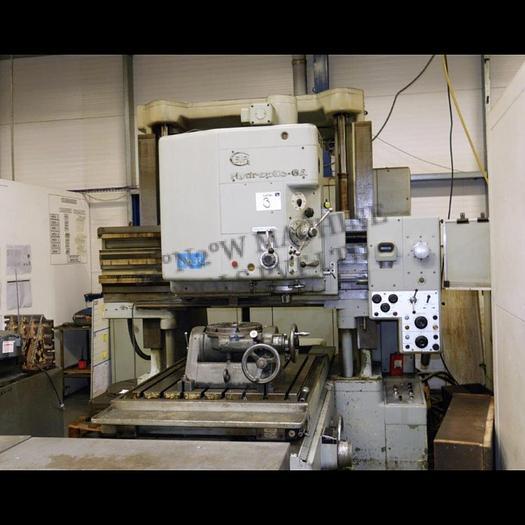

SIP HYDROPTIC 6A JIG BORING MACHINE.

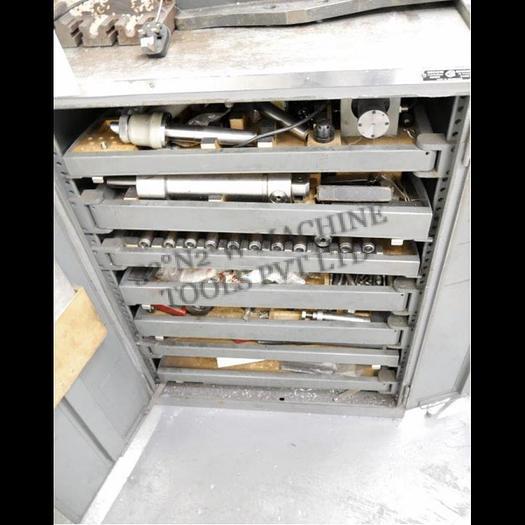

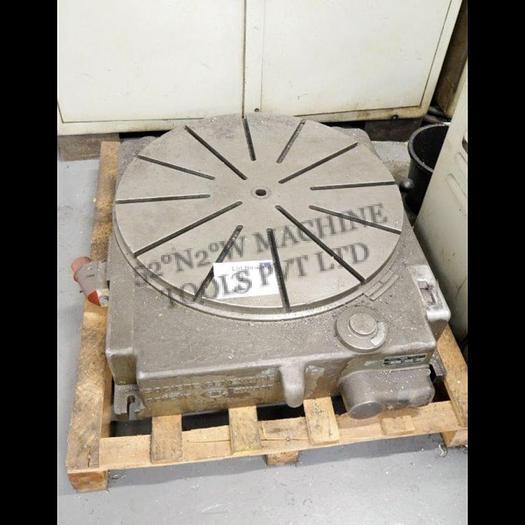

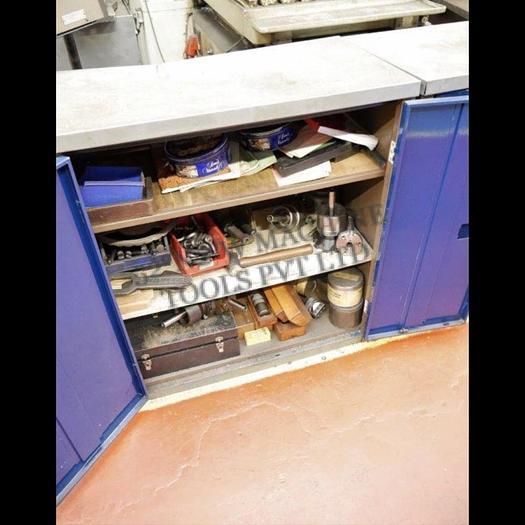

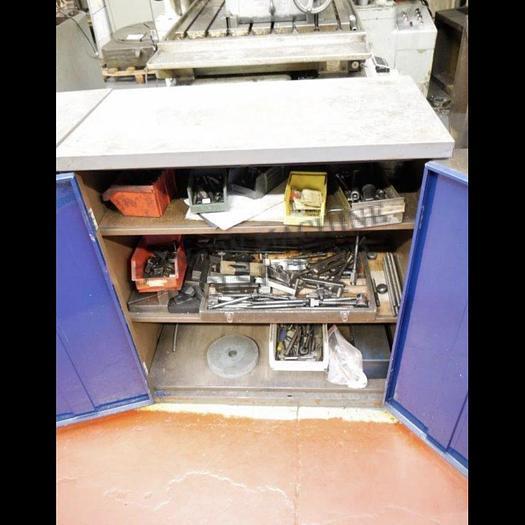

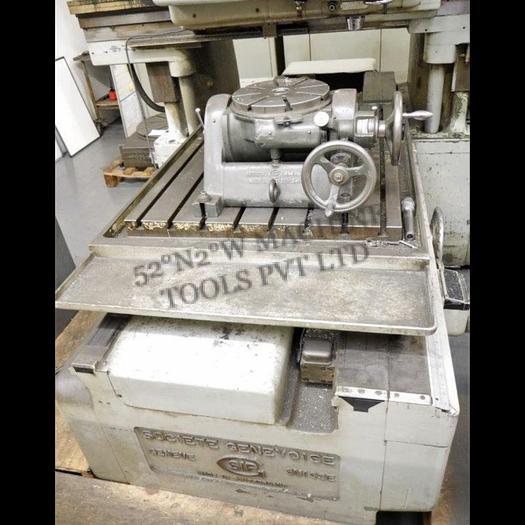

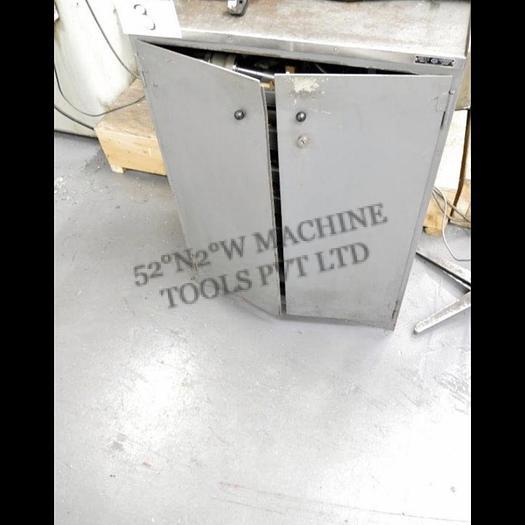

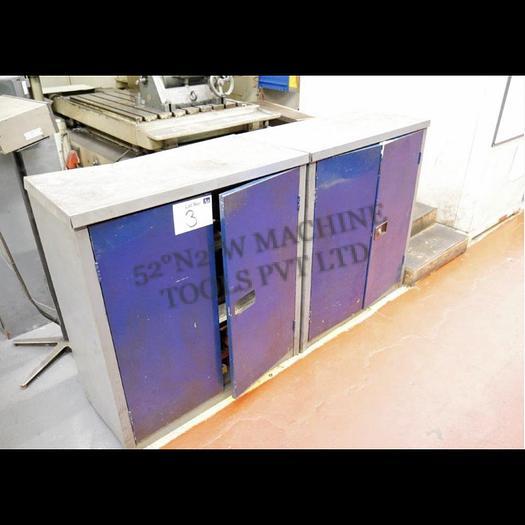

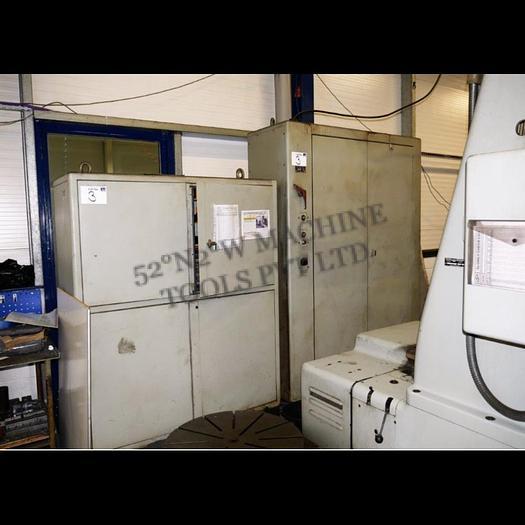

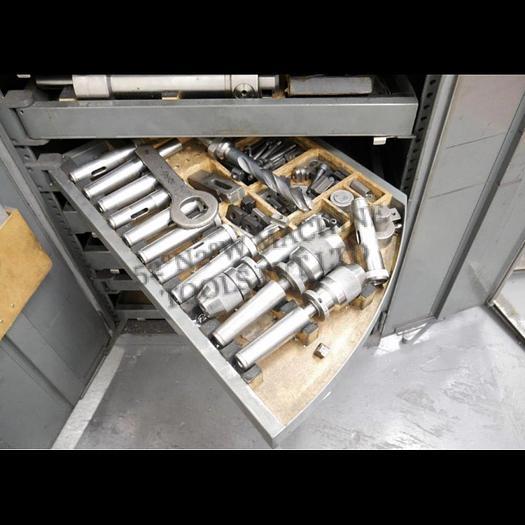

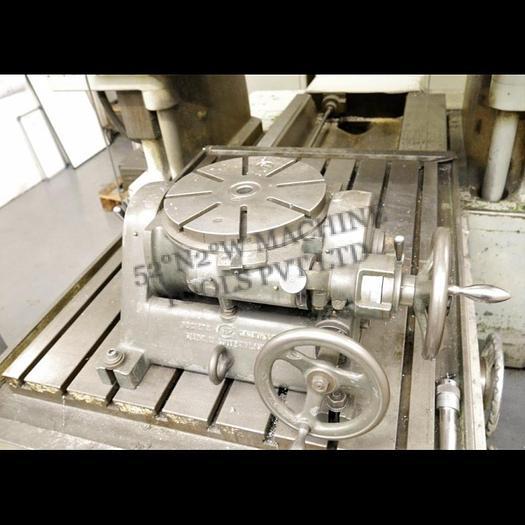

With Ø800mm Rotary Table, Ø300mm Indexing Table. 3 Steel Cabinets With Contents Of Boring

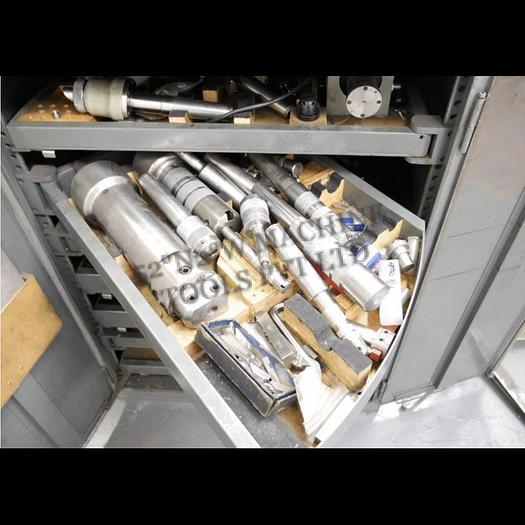

Heads, Tooling, Fixturing And Clamping

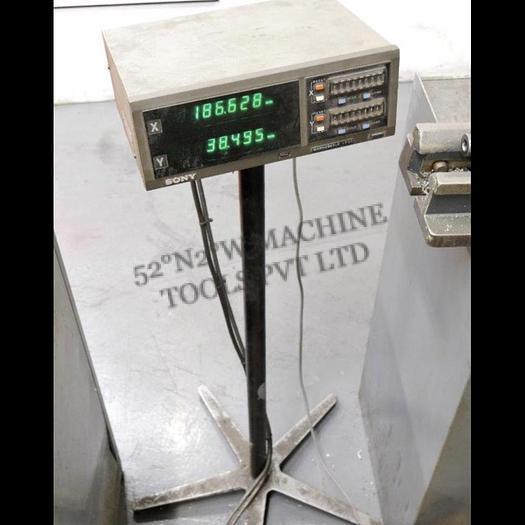

Sony 2 Axis DRO
Table1100x842 mm
Travels X/Y/Z- 1000x700x800
Table load max. 1000 kg
Drill capacity in steel 60 mm
Diameter of drilling spindle 135 mm
Stroke of drilling spindle (Z-axis) 300 mm
Bore diameter max. 300 mm
Number (steps) 18
30,60,90,180 mm/per minute
Number (steps)- 6
-longitudinal 2600 mm/min
-transversal from 1500 mm/min
-vertical 1500 mm/min
Distance between columns 1100 mm
Distance between spindle and table 1000 mm
Spindle motor 8.00 HP
Total power required 12.0 HP
Big quantity of accessories
