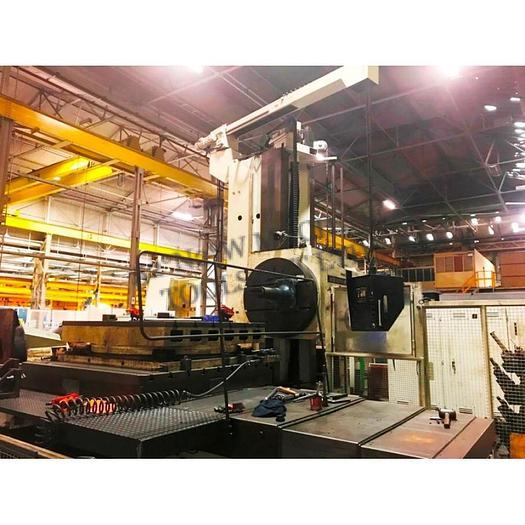

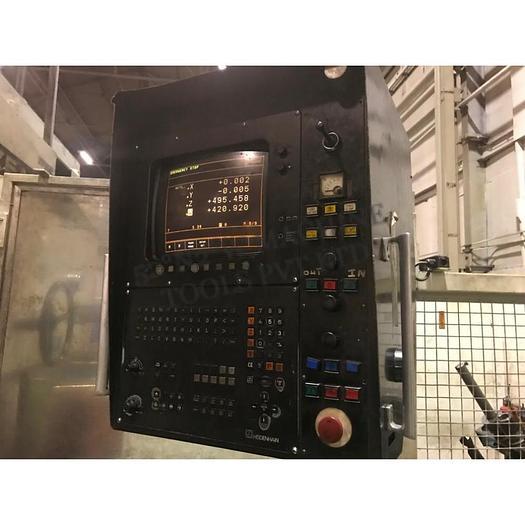

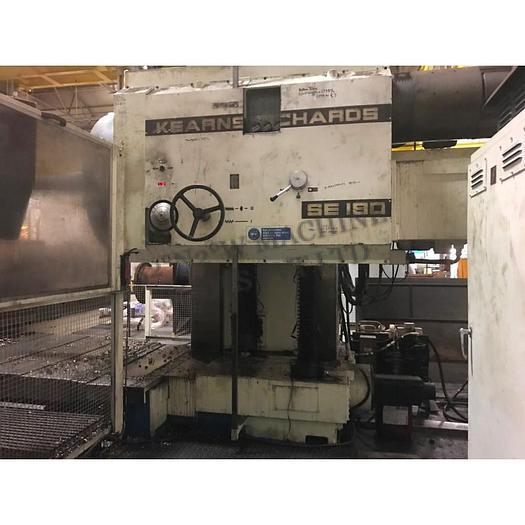

The Kearns Richards SE180 CNC Table Type Horizontal Borer, equipped with Heidenhain TNC410 Control, boasts precision in machining. Its robust design facilitates accurate horizontal boring operations. The Heidenhain control system ensures seamless programming and execution, making it a reliable choice for industries demanding high-quality and intricate machining processes.
Spindle: 180mm Dia,
Spindle Taper: 150 ISO,
Spindle Travel: 960mm,
Spindle speeds 14 – 710 rpm,
Facing head speeds 3.5–180 rpm,
Vertical travel (Y Axis) 2320 mm,
Longitudinal travel (W Axis) 1336 mm,
Cross travel (X Axis) 1862 mm,

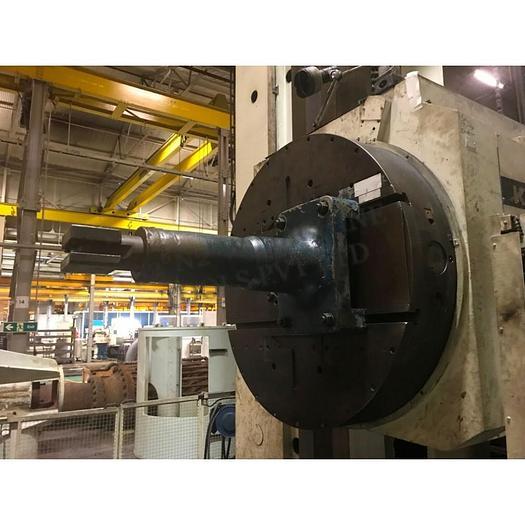

Facing Head Dia 1000 mm,
Facing head slide stroke : 280 mm,
Main motor : 50HP,
Feed motor : 15HP,
Table size : 1800mm x 1800mm,
Table Loading : 20 Tons.
