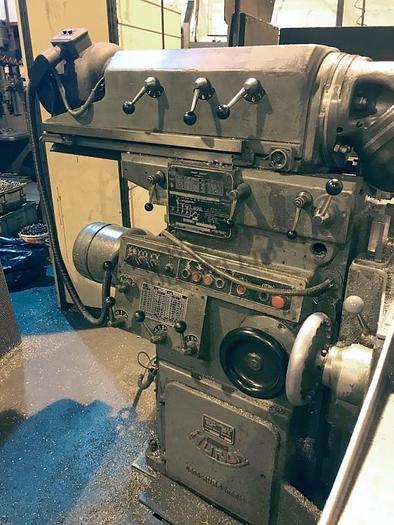

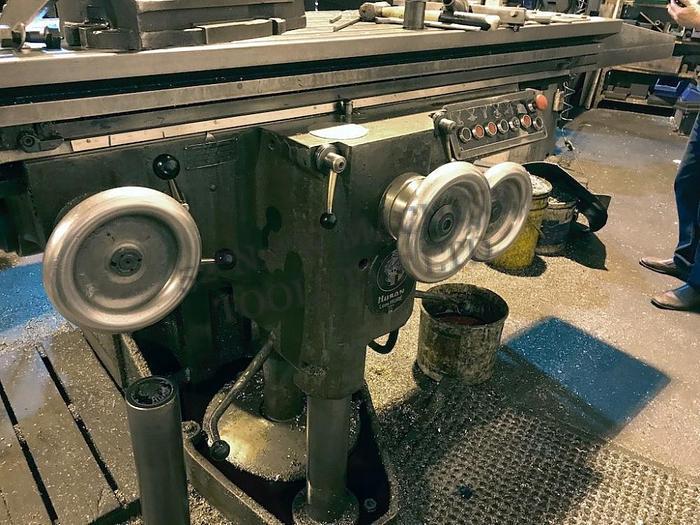

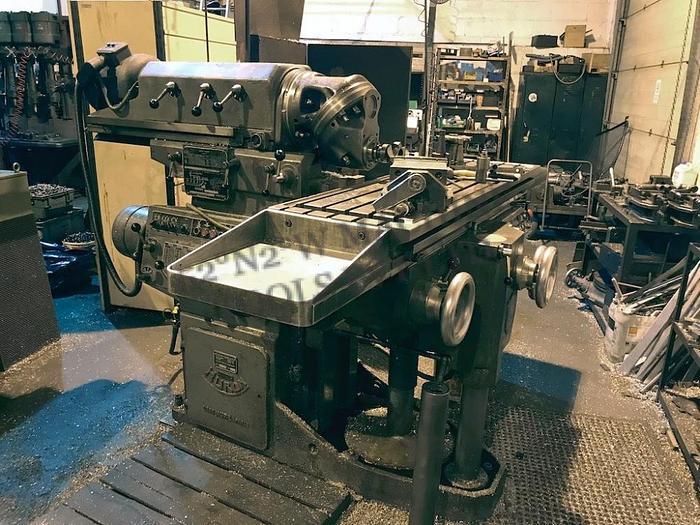

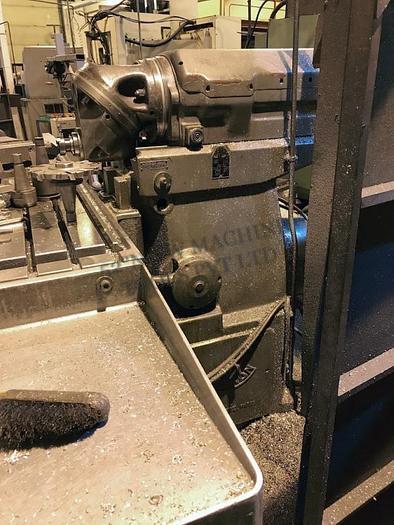

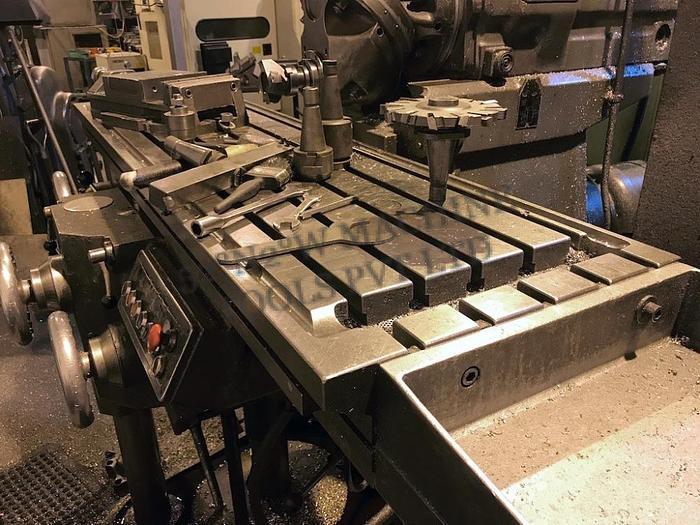

The Huron NU5 Milling Machine is a versatile tool for milling operations. Widely used in workshops and manufacturing plants, it ensures precision in shaping various workpieces. With user-friendly controls and robust construction, it facilitates efficient machining operations, making it essential for various industrial applications requiring accurate milling capabilities.
-X axis – 1300.0 mm
-Y axis – 700.0 mm
-Z axis – 500.0 mm

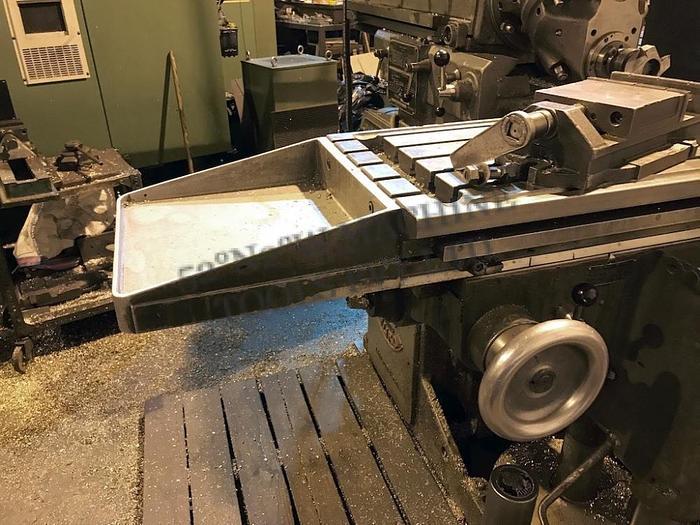

-Table length – 1635.0 mm
-Table width – 460.0 mm

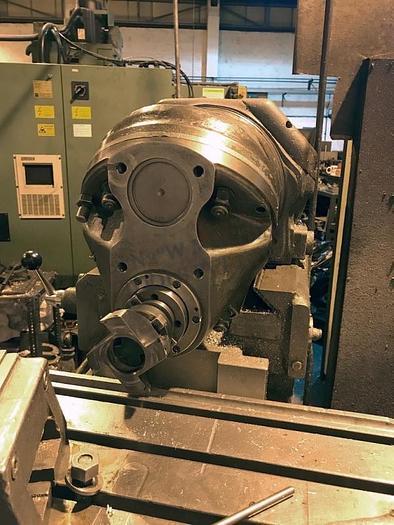

-Spindle taper – 40 International
-Spindle motor power 8.9 kW
-Length x width x height – 1700.0 mm × 2200.0 mm × 1700.0 mm
-Weight – 3200.0 kg
-Number of grooves 5
-Maximum distance between the spindle axis and the table 500 mm
-Number of spindle speeds 27
-Spindle speed 30-2066 rev / min

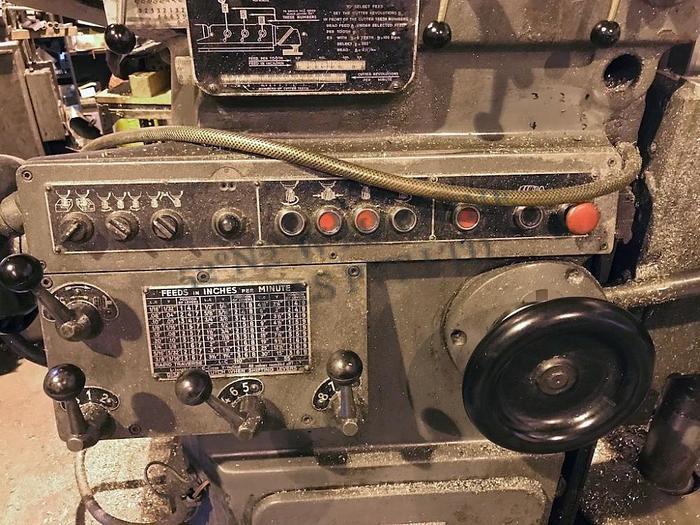

-Automatic longitudinal and transverse advances from 1.6 to 820 mm / min
-Vertical advances from 0.8 to 410 mm / min
-Fast forward X and Y 2800 mm / min
-Fast forward Z 1400 mm / min
-Coolant system
-Visu 2 axes Yes (Transverse, Longitudinal)
-Engine 12 hp
-3.5 hp motor advances
-With Tooling Package
