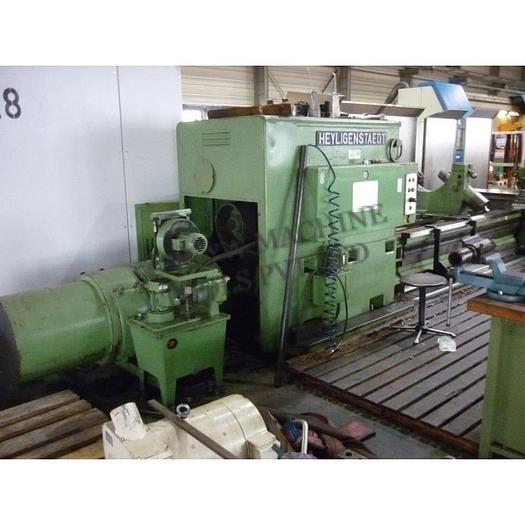

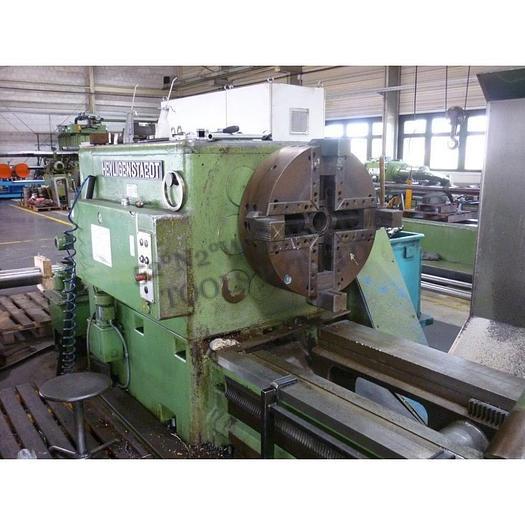

HEYLIGENSTAEDT NDA560 CNC Lathe

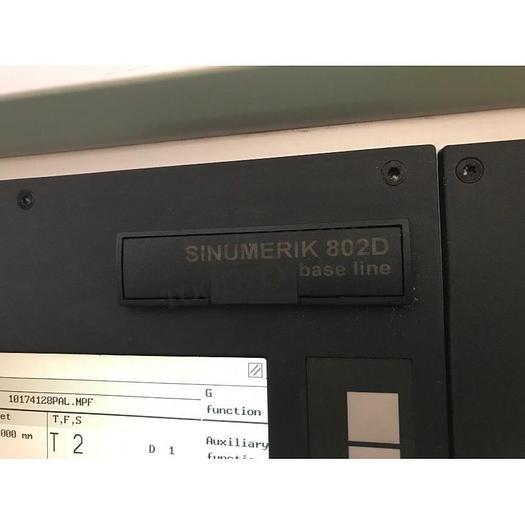

HEYLIGENSTAEDT NDA560 CNC Lathe with Siemens 802D Control. Retrofitted in 2007

Re- conditioned in 2007 and retro-fitted with Siemens 802D Control.

Centre Height 560 mm. Swing Over Bed 1120 mm. Swing Over Cross Slide 820 mm.

Width Of Bed 850 mm. Distance between centres 5000 mm. Spindle Bore 75 mm.

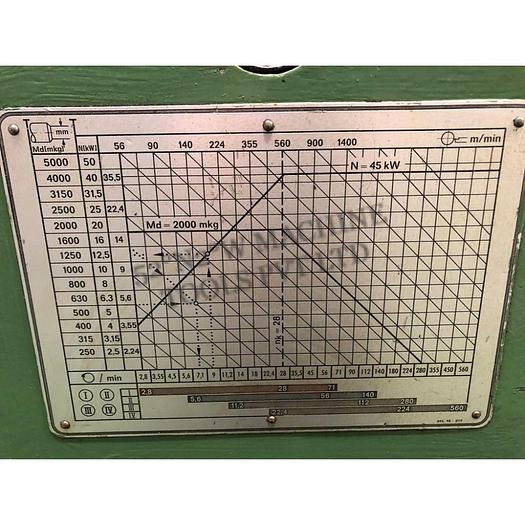

Spindle Speeds 2.8 – 560rpm. Main Motor 45 Kw. Dia. Of Tailstock Quill 200 mm.

Work Piece Weights 10 Ton without steady
