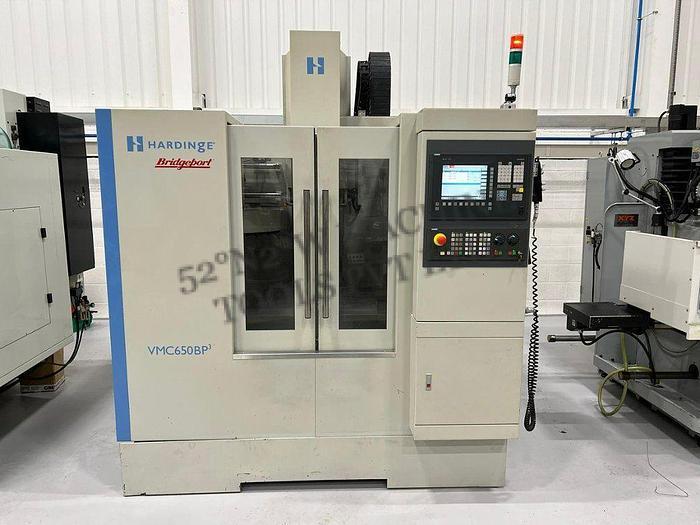

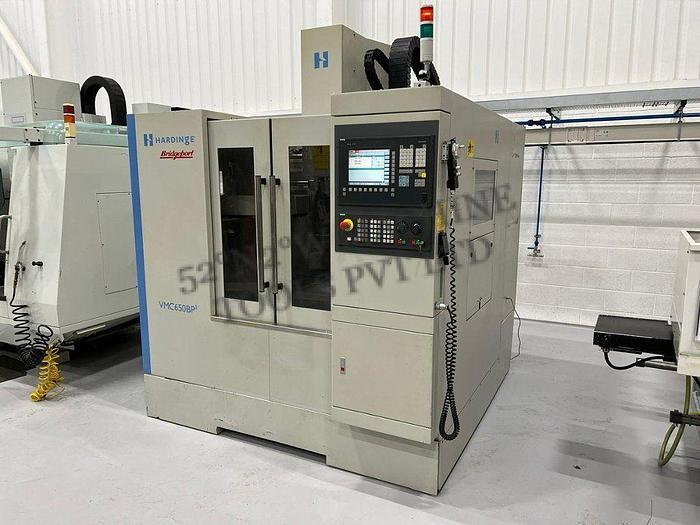

The HARDINGE Bridgeport VMC650BP3 is a machine used to shape metal vertically. It has advanced controls from Siemens called Sinumerik 810D ShopMill, making it easy to operate. Built in 2007, it’s a reliable tool for precise machining tasks in various industries.

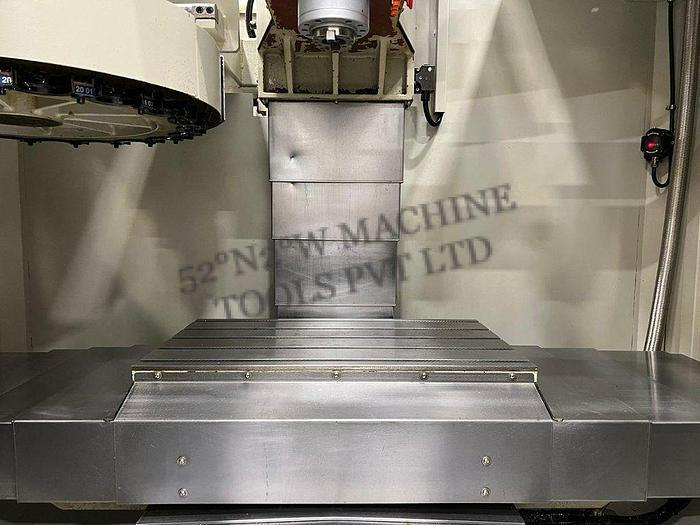

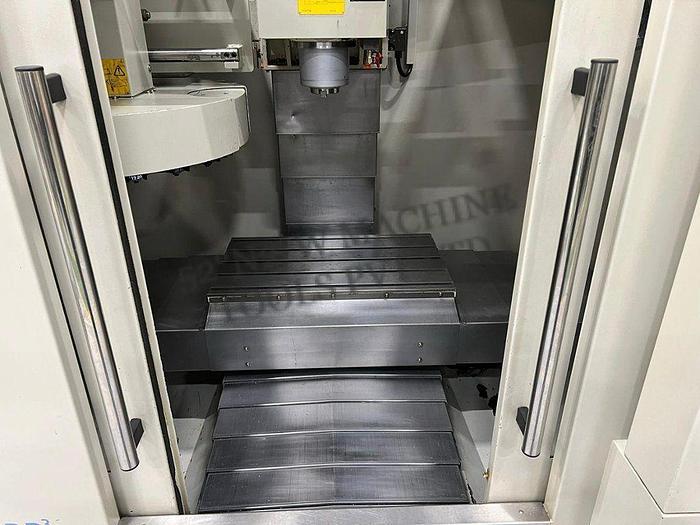

Table size 800mm x 470mm
Table loading 500kg
T Slots (No. width & centres) 5 x 18 x 100mm.
X/Y/Z travels 650mm/500mm/500mm
Spindle power 10 kW
Spindle speeds 8,000 rpm

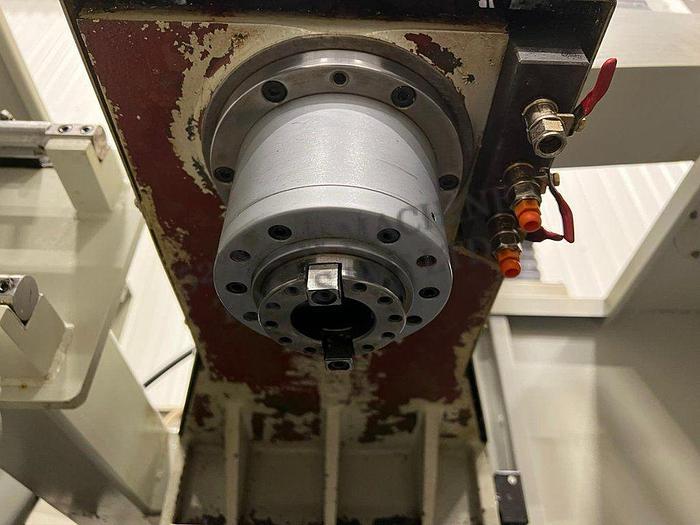

Spindle taper BT40
Spindle nose to table top min/max 125mm/625mm
Rapids X/Y/Z 30m/min
20 station ATC
Tool dia. (max) 80mm
Without adjacent tool 150mm dia
Max tool length 200mm
Max tool weight 7kg
Machine dimensions L x W x H 2,400mm x 2,300mm x 2,100mm
Approximate weight 3,000 kg.
