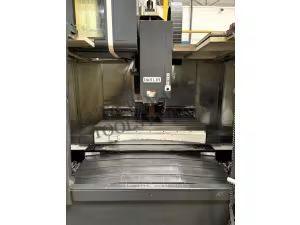

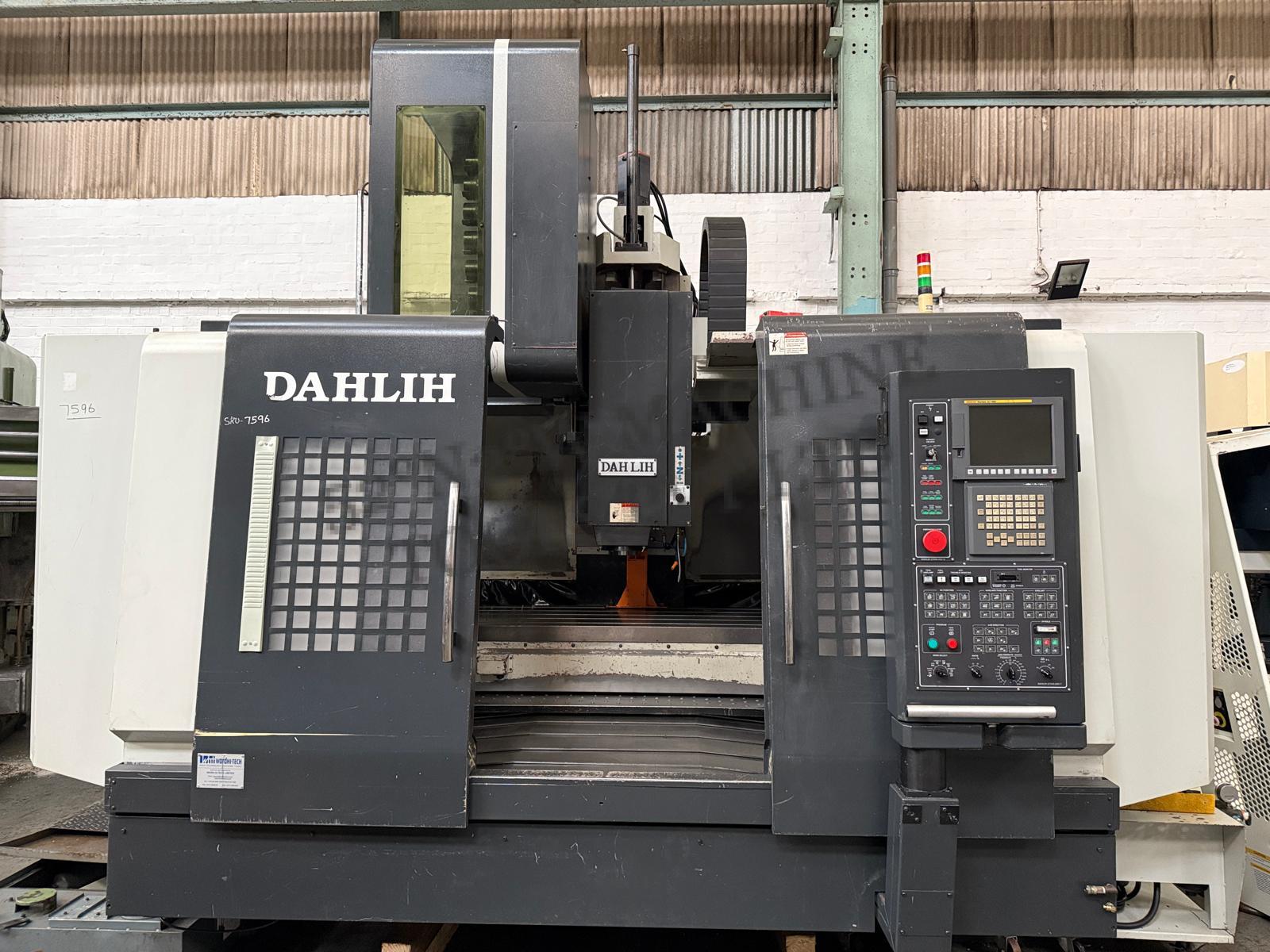

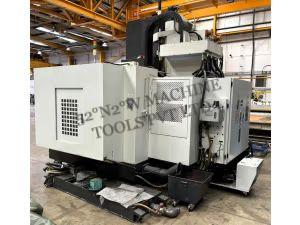

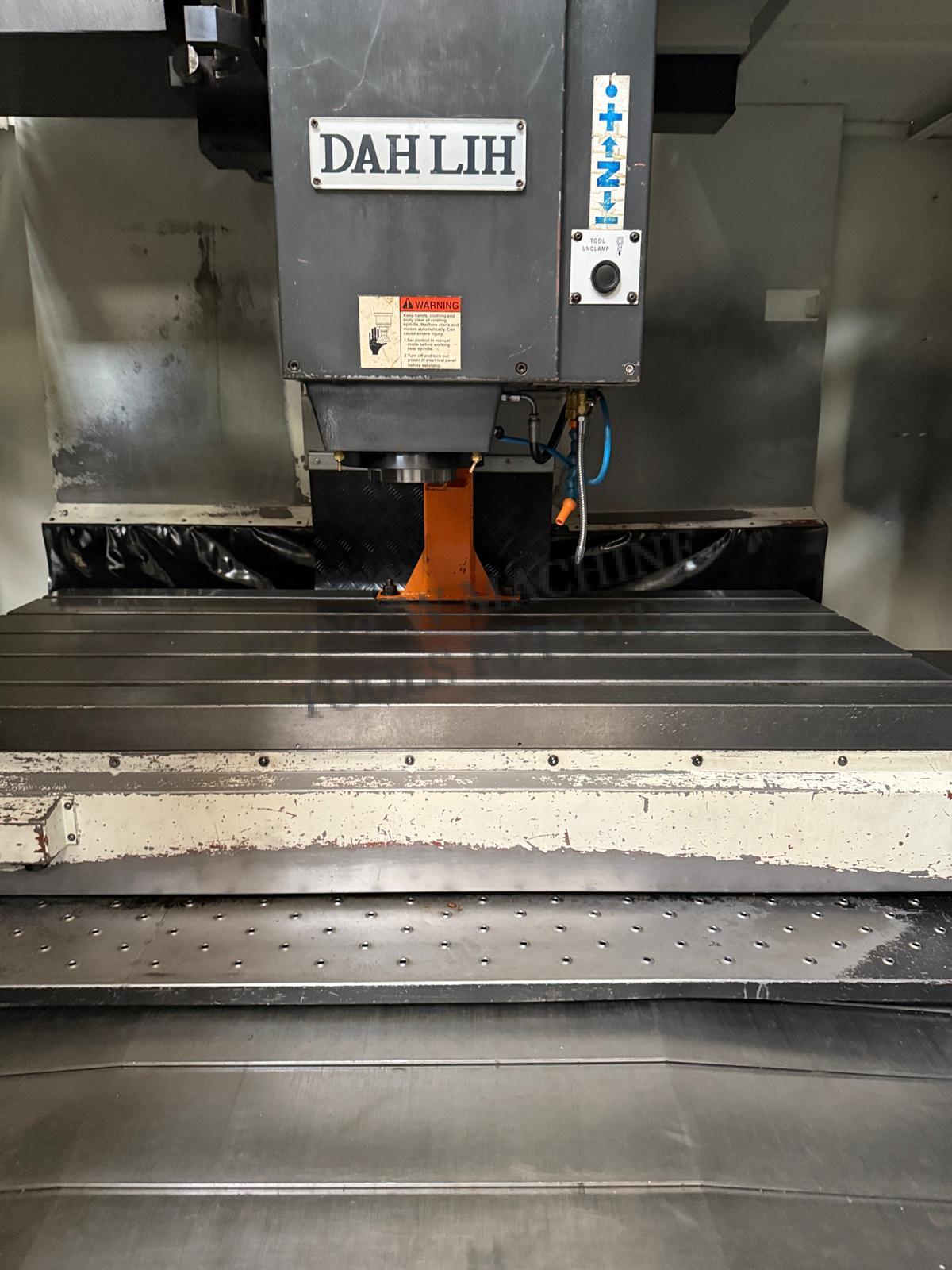

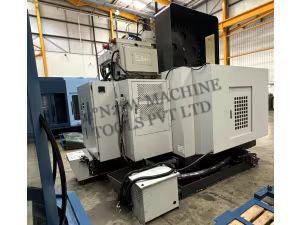

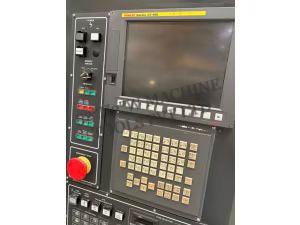

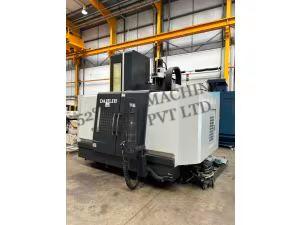

DAHLIH MCV-1450 CNC VERTICAL MACHINING CENTRE WITH FANUC SERIES OI-MD CONTROL

Contact us for price
WEST BROMWICH, U.K.

or

Call : +44 (0) 1212748593

Description

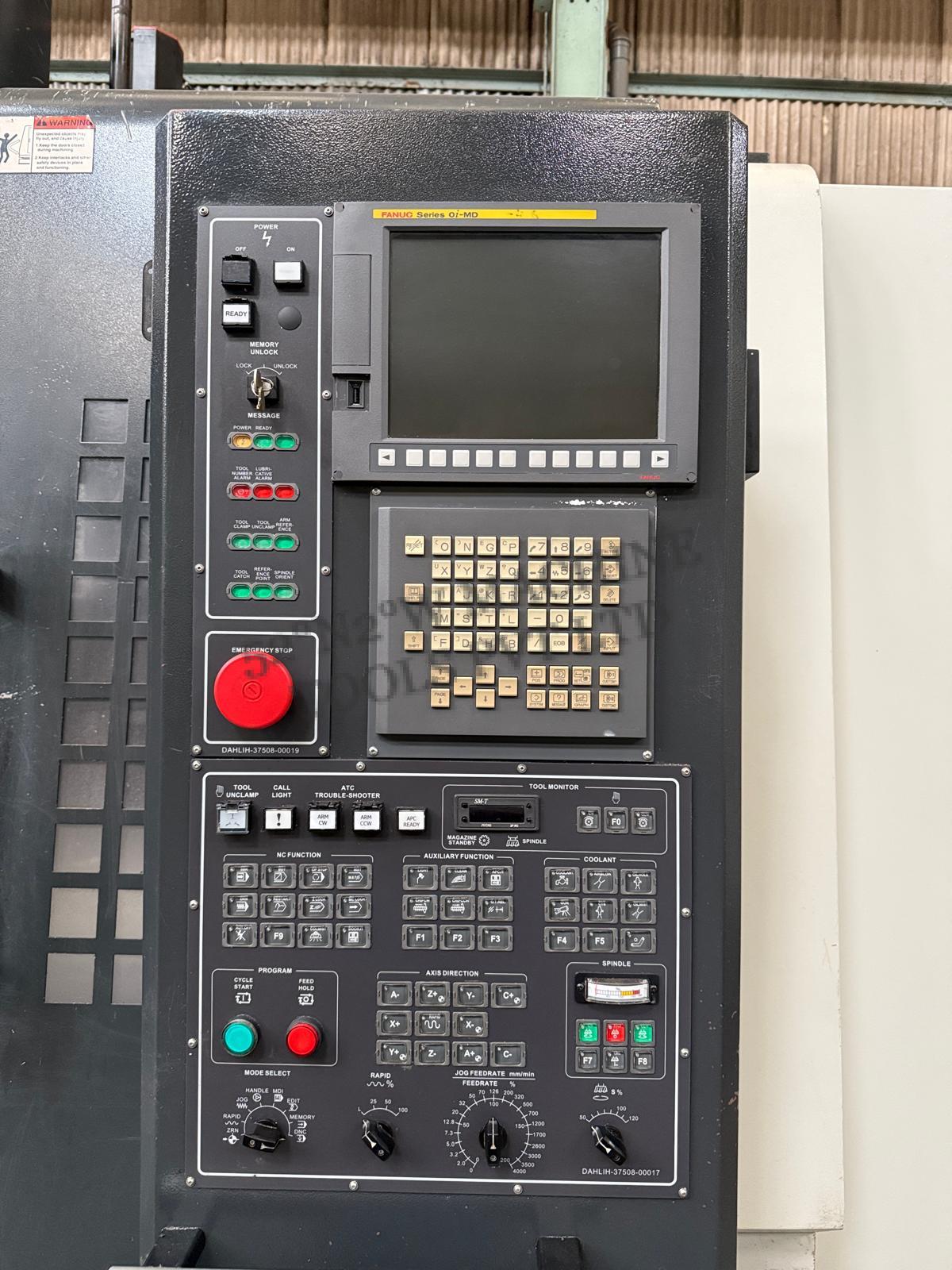

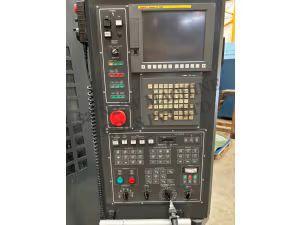

The DAHLIH MCV-1450 is a CNC vertical machining centre equipped with a FANUC Series OI-MD control system. It offers precise and efficient milling, drilling, and cutting operations. Ideal for medium to large-scale production, it ensures accuracy, speed, and versatility, making it suitable for a wide range of machining tasks.

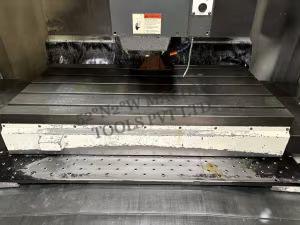

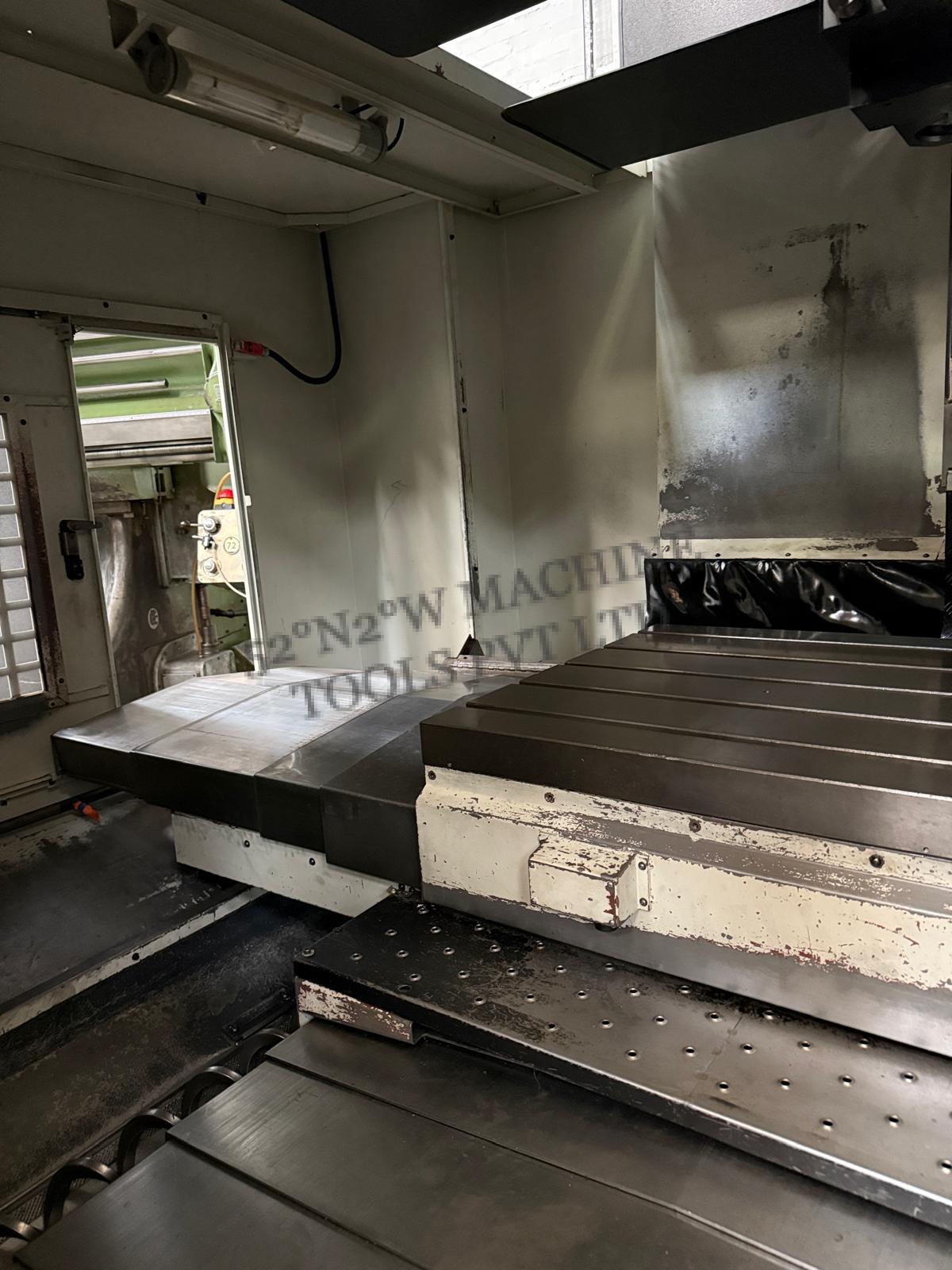

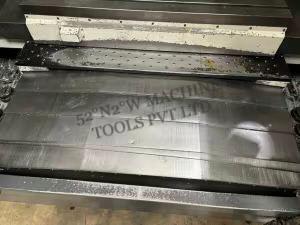

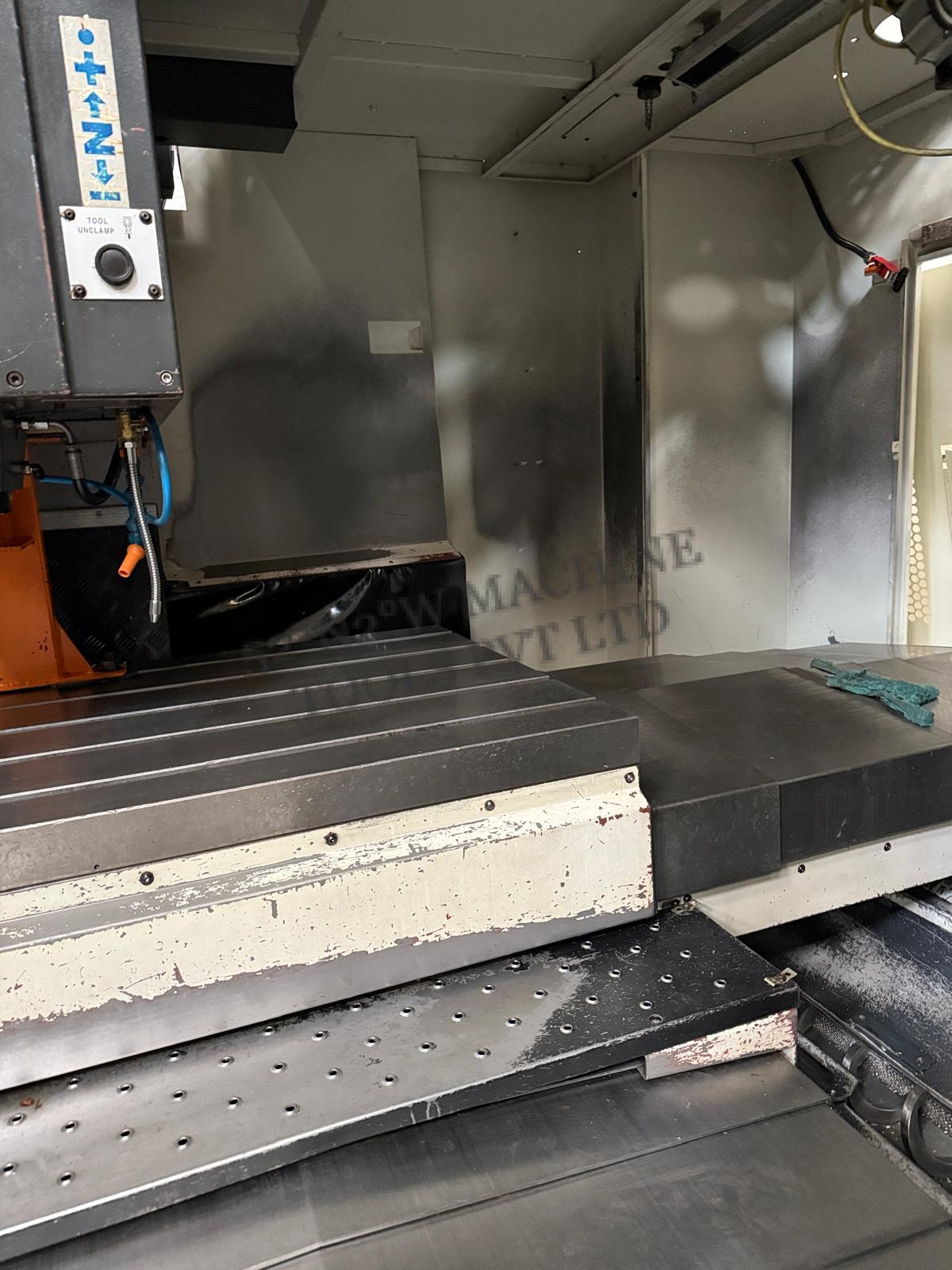

Table Dimension : 1,600 x 800mm (5 ‘T’ Slots),

Maximum Table Load  : 2,000rpm,

Axis Travel ‘X’ : 1,450mm, ‘Y’ : 750mm, ‘Z’ : 750mm,

Distance Between Spindle Nose To Table : 200-950mm,

Distance From Column To Table Centre : 850mm,

Rapid Traverse ‘X’=20m/min, ‘Y=20m/min’, ‘Z’=12m/min,

Maximum Cutting Feed : 10,000mm/min,

Maximum Spindle Speed : 6,000rpm,

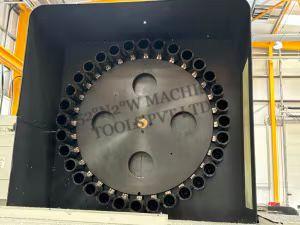

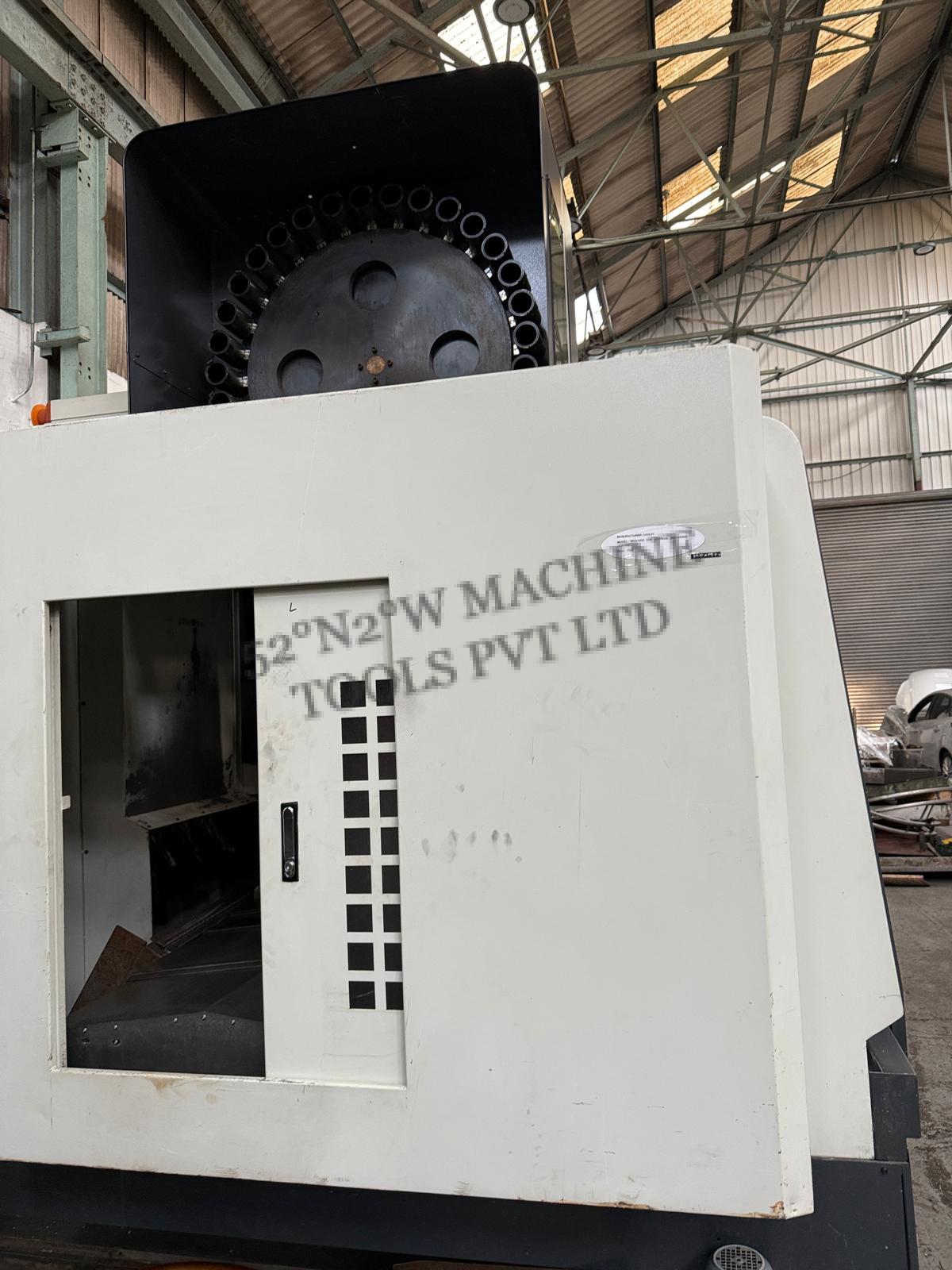

32 Position ATC,

Spindle Taper : BT50,

Maximum Tool : Ø110mm (Ø150mm Non Adjacent),

Maximum Tool Length : 350mm,

Maximum Tool Weight : 15kg.
