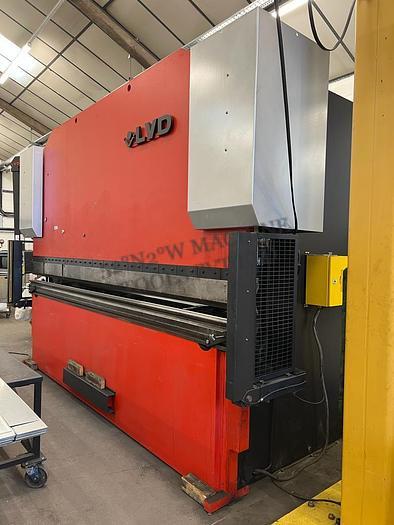

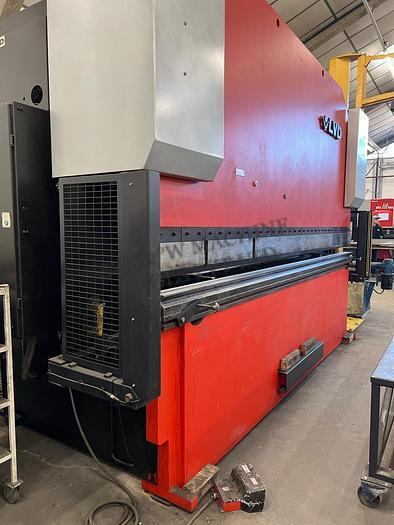

The LVD 220 Tonne Press Brake is a powerful machine used for bending and shaping metal sheets. With a pressing force of 220 tonnes, it handles heavy-duty tasks with precision. Ideal for industrial use, it ensures accurate bends, high efficiency, and reliable performance in metal fabrication projects.

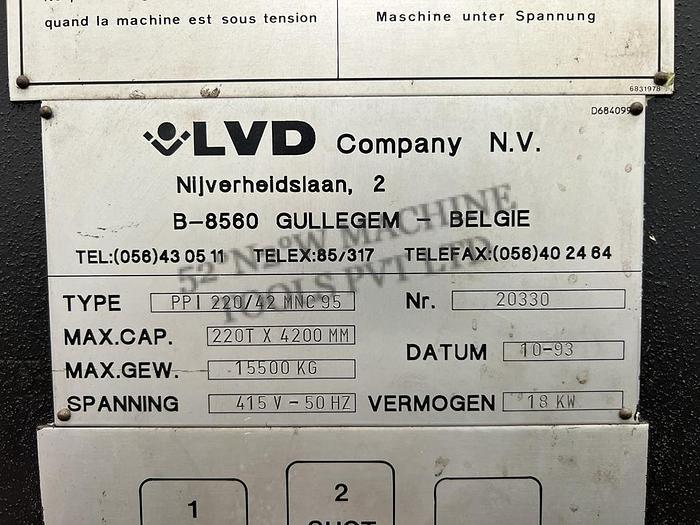

Max. Pressing Force= 2200KNMax. Working Length= 4200 mm
Distance b/w the frames = 3760 mm
Max. Length of Stroke= 200 mm
Working Height= 910mm
Working Height with crowning= 1065mm
Maximum distance table/ram= 450mm
Maximum distance table/ram with V-axis= 420 mm
Depth of Gap= 300 mm
Width of the table= 180 mm
Approach speed= 100 mm/s
Working Speed= 7 mm/s
Return Speed= 72 mm/s
Motor= 15 mm/s
Oil tank= 250L
Machine Weight= 16800 Kg
