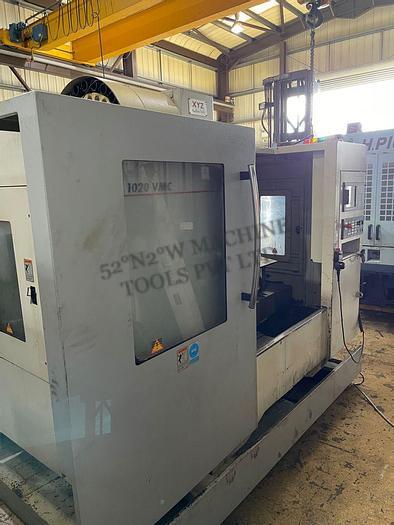

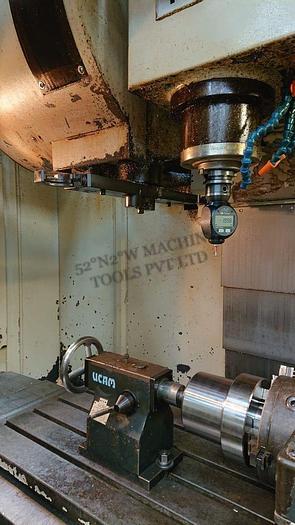

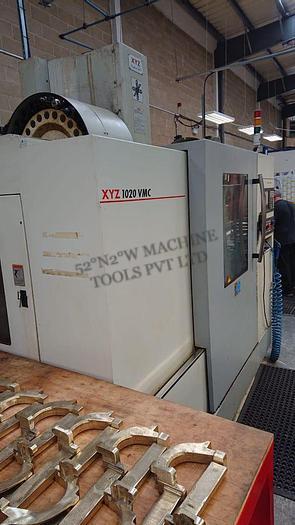

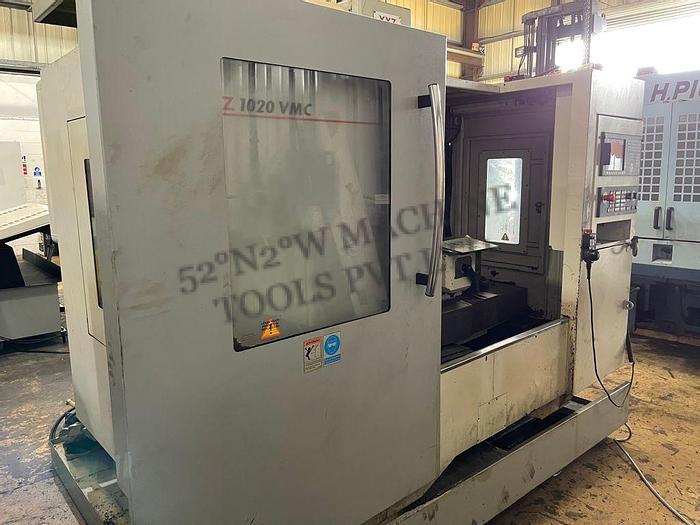

The 1020’s 24 station tool changer gives a 2.5 second tool change time for optimum cycle times. The 1020 boasts ‘extra wide’ box slideways on all the three axes which are hardened and precision ground for superior vibration dampening. All slideways surfaces are also coated with Turcite-B for improved wear resistance.
WORKING TRAVEL:
X axis: 1,020 mm; Y axis: 520 mm; Z axis: 575 mm

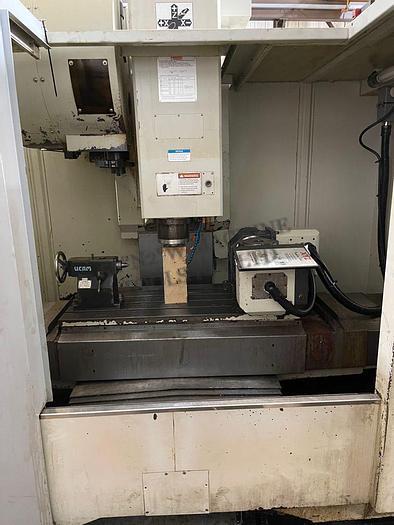

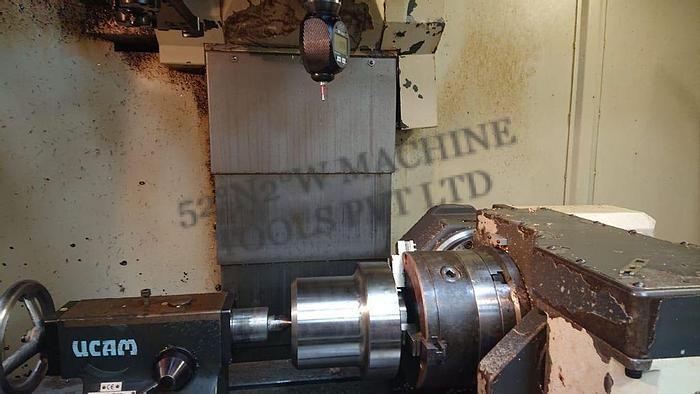

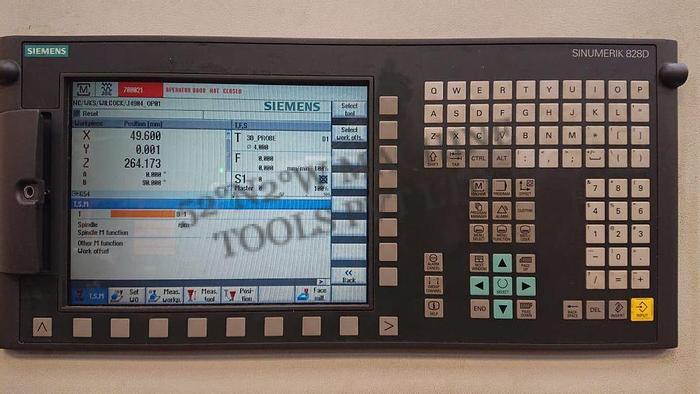

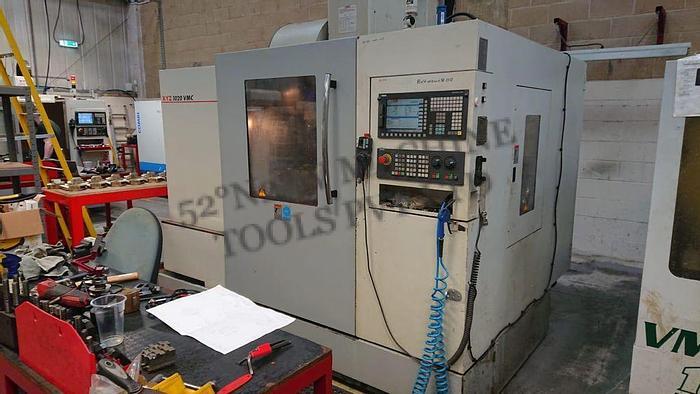

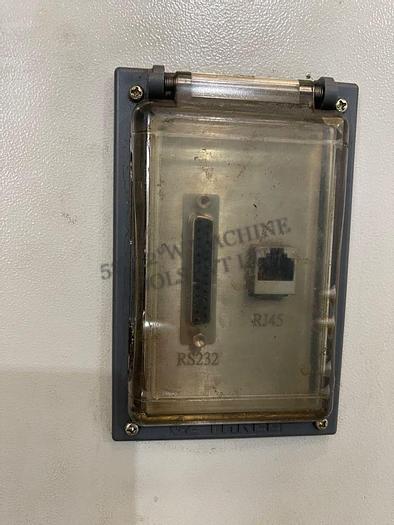

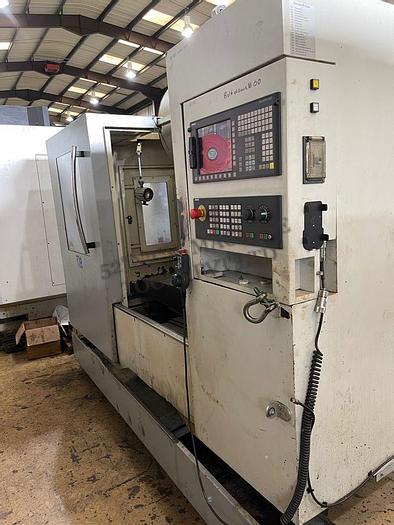

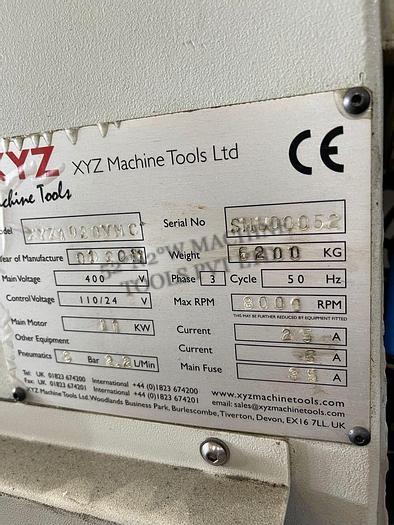

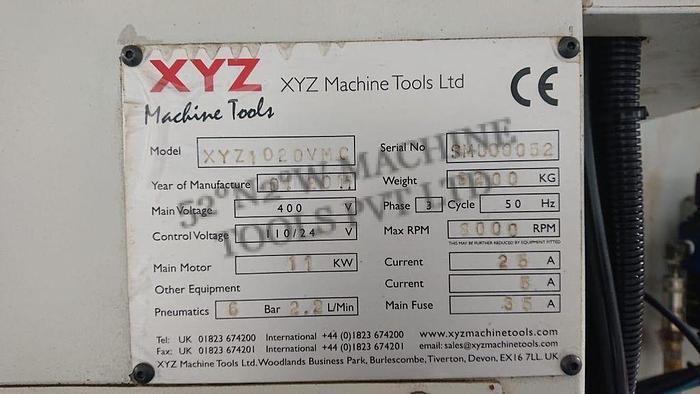

CONTROL: CNC Siemens 828,

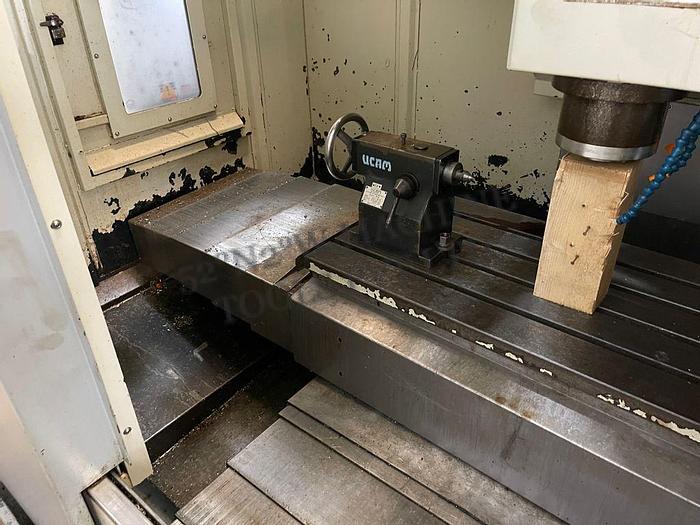

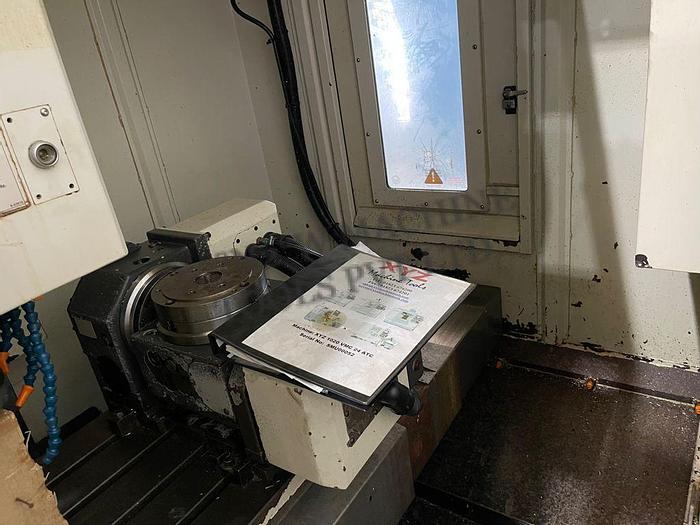

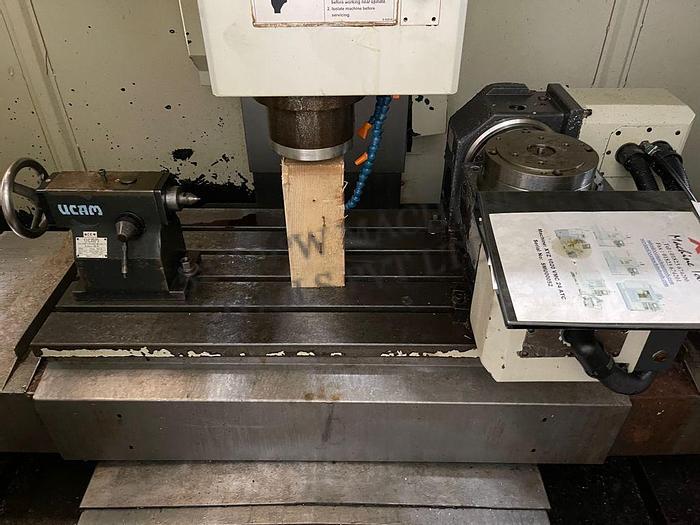

TABLE: 1120 x 500mm,

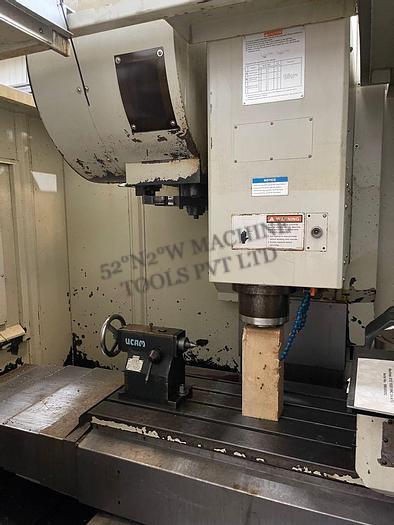

SPINDLE CENTRE TO COLUMN: 570 mm,
SPINDLE TO TABLE: 125 – 700mm,
COLUMN FRONT TO TABLE CENTRE: 290 – 790mm,
RAPID SPEED XYZ AXIS: 20 M/min Box Way,
CUTTING FEED RATES: 1 – 20000 mm/min,
MAX. WEIGHT ON TABLE: 800 KG,
T SLOT SIZE: 18 mm,
T SLOT NUMBER & PITCH 4 @ 100 MM,

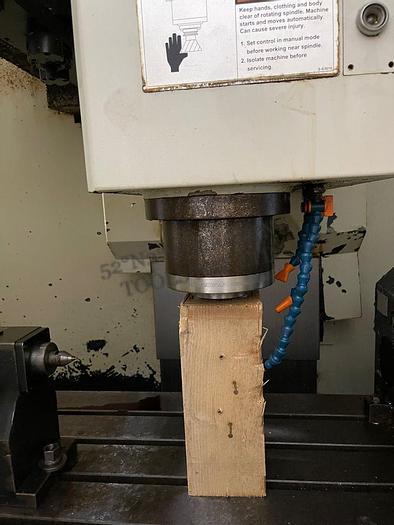

SPINDLE SPEEDS: 60 – 8000rpm,
TOOL HOLDER: BT 40,
SPINDLE MOTOR: 20 HP / 15 Kw,
ATC: 24,
TOOL CHANGE TIME TOOL TO TOOL: 2.5 sec,
MAX TOOL DIA: 80 mm,
MAX TOOL WEIGHT: 7 kg,
BALLSCREW SIZE (GRADE C3): 40 mm PI0.
